Placement of 3 XiVE implants posterior to lower right canine in partial edentulous patient. (Insertion torque measurement - Frios® unit E).
Incision top & relaxing incision, localization of mental nerve/foramen, controlling clinical measurement with radiographic analyses before drilling start.
|
|
|
Click to view movie |
Round drill and use of surgical template to set up the preliminary placement and axial orientation of implants. Width & direction lingually of alveolar process controlled. Final placement, direction and size (diameter) of implants confirmed.
Drilling sequences and preparation of each implant site:

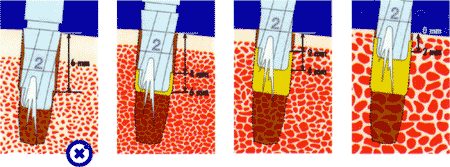

Recomended preparation depth according to bone quality for XiVE® :
|
|
 |
Bone class D I:
6 mm |
Bone class D II:
4 - 6 mm |
Bone class D III:
2 - 4 mm |
Bone class D IV:
0 - 2 mm |
|
It is better to prepare the crestal section of the site too deeply than not deep enough. Even with the maximum crestal drill depth of 6 mm the implant generally has sufficient primary stability.
|
 |
 |
|
|
Placement of 3 XiVE implants by the use of mounted TempBase & the handpiece (Frios Unit E) to obtain documentation of the torque curve on the monitor and for the records:
Bone Augmentation & Sutures.
|
|
|
|
|
